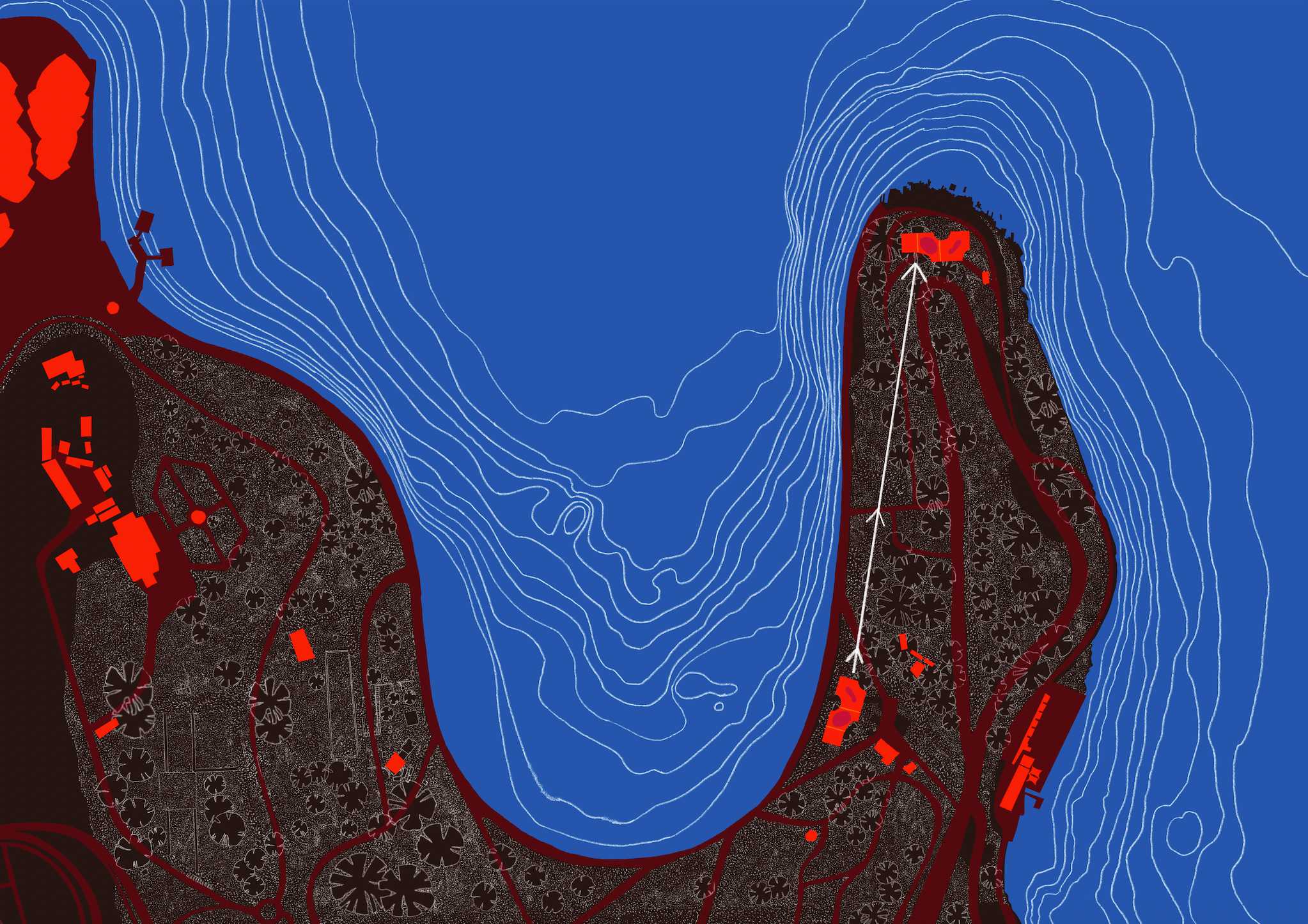

A photograph of the site model, which situates the pavilion on the tip of Macquarie Point. The form of the arched facade is reflected against a dramatic, stilled ocean.

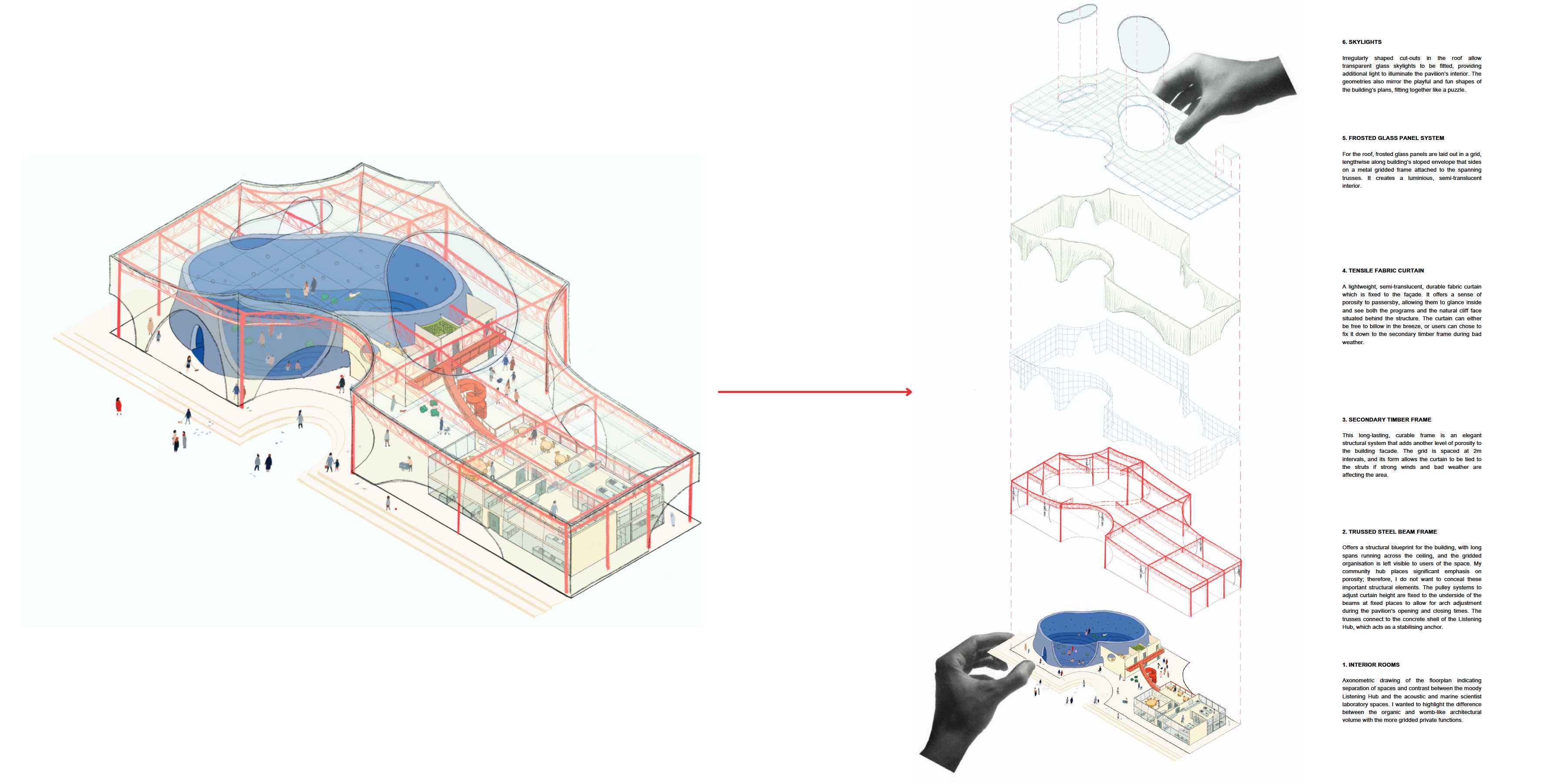

The hand-drawn exploded axonometric shows the building's structure, the separation between the womb-like Listening Hub (coloured blue) and the gridded Sound Labs, and additionally, a glimpse into the activity within.

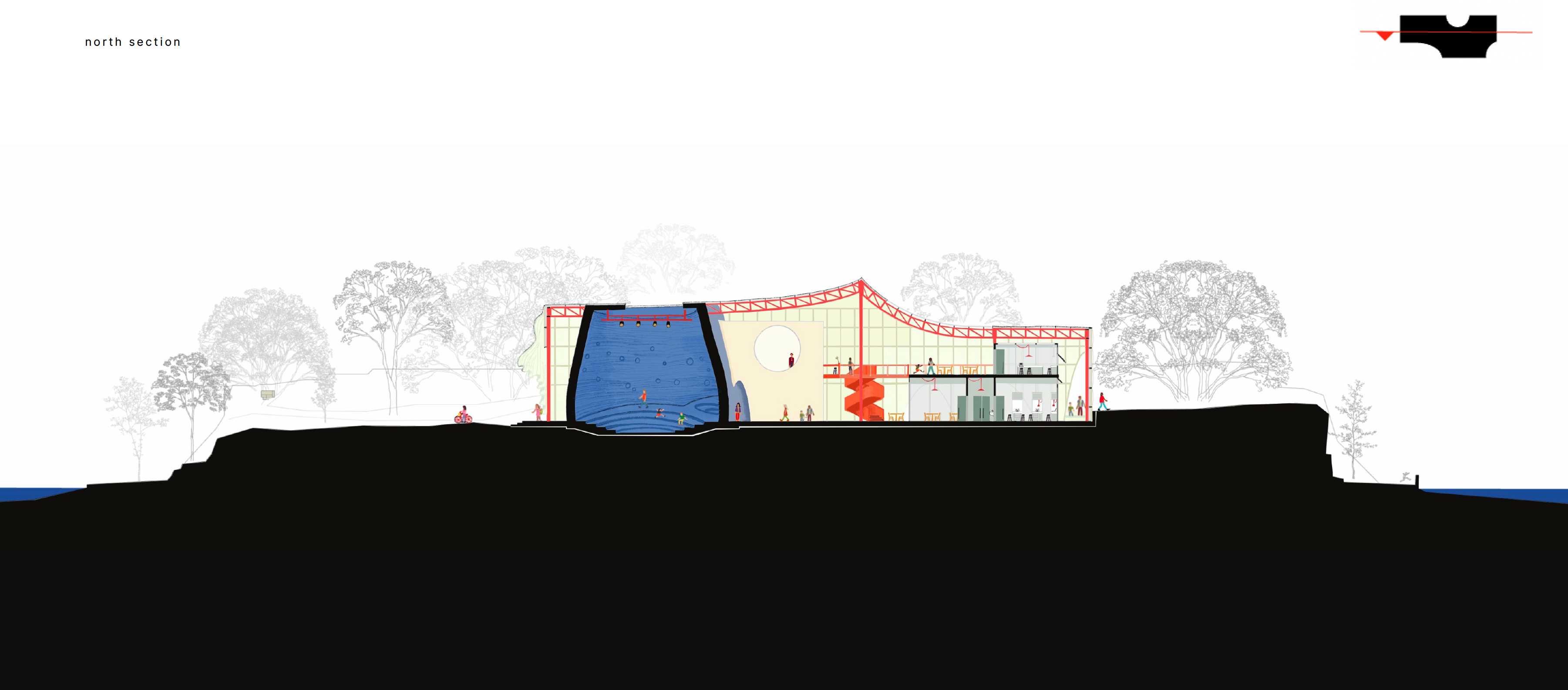

This coloured, hand-drawn section cuts through the pavilion and depicts the interior architectural condition and the separation of programs.

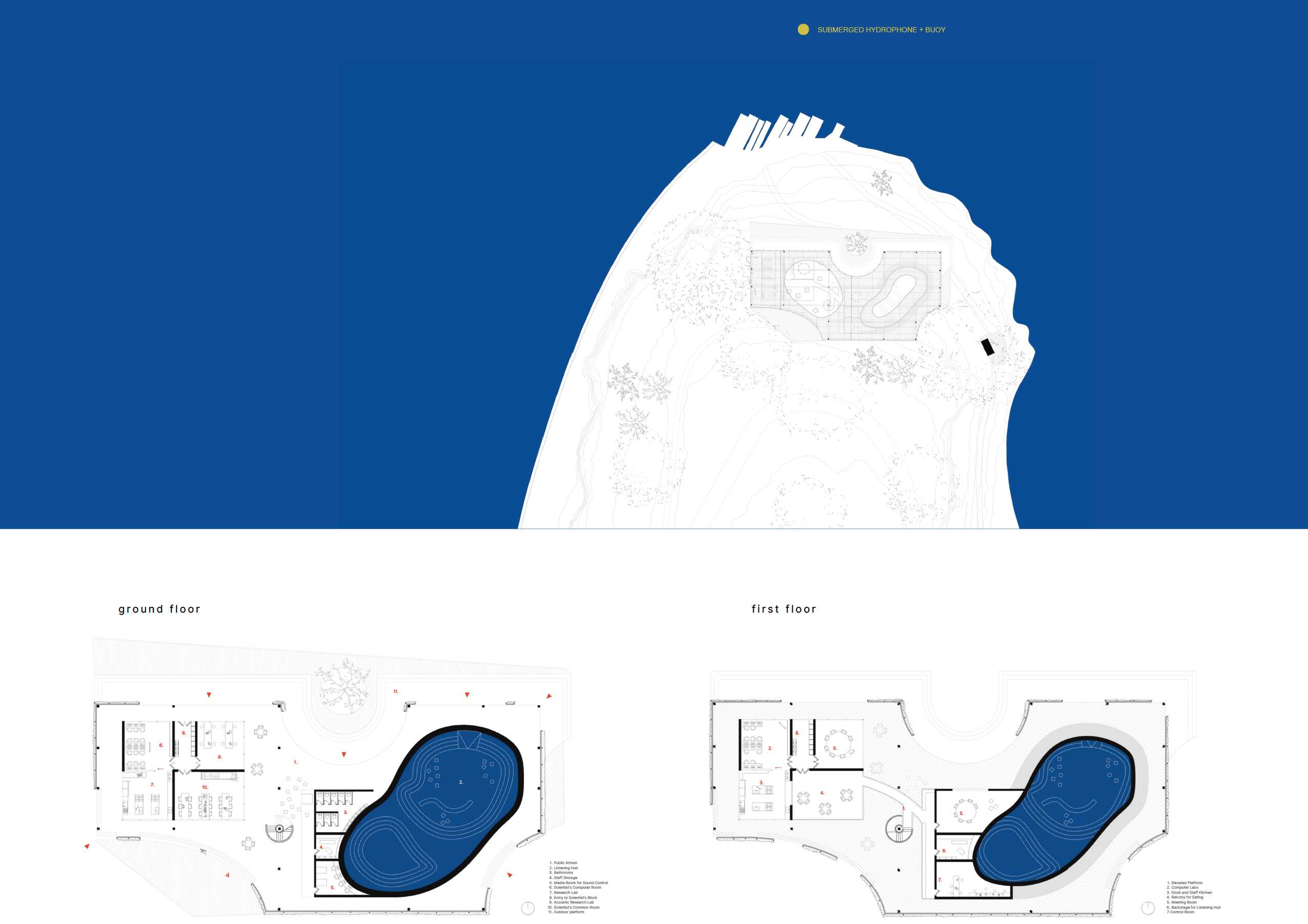

A site plan showing the translucent roof in relation to the surrounding Macquarie Point and Botanic Gardens context, along with individual detailed floor plans.
A hand-drawn view of the Pavilion of Echoes from above, showcasing the Sydney Harbour’s necklace of architectural pearls on the tips of the wharf fingers.
